WAVECT Suite software
WAVECT® Suite software
WAVECT Suite is the interfacing software for WAVECT Controller, which is capable of controlling, Monitoring, Recording and Analyzing the Real – Time signals with inbuilt protections to protect your valuable equipments.
- Push button flow for programming controller with user’s control function model.
- Drag-and-drop method for Control function IO’s to Hardware IO’s mapping
- Perform control function tuning in real time
User Selectable Workflow

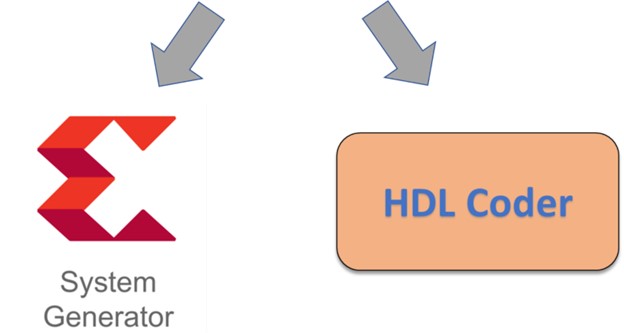

With user selectable code generation process, program your WAVECT efficiently with optimzed code generation and programming workflow. User can select between System Generator and HDL Coder workflow for the comfort of users.
Inbuilt Protections
- Over and Under Voltage User configurable threshold limits
- Over and Under Current User configurable threshold limits
- PWM Short circuit protection with Master Trip and Error Flag Indication and many more..
Dashboard

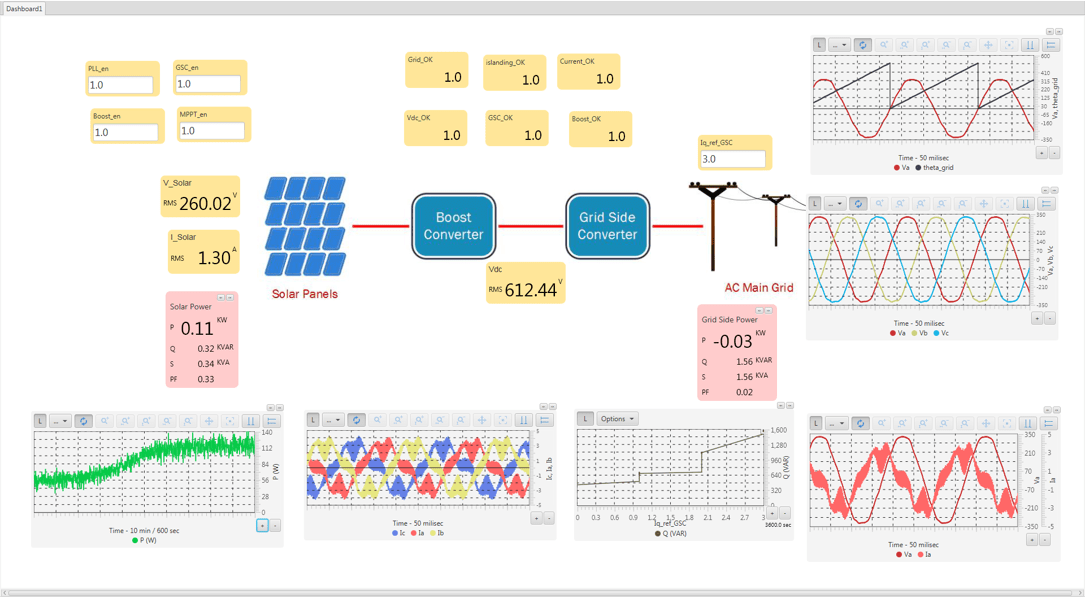

User configurable multiple dashboards to visualize and monitor real time data with visualization features like Pan, zoom, colour change etc...
Data Plotting

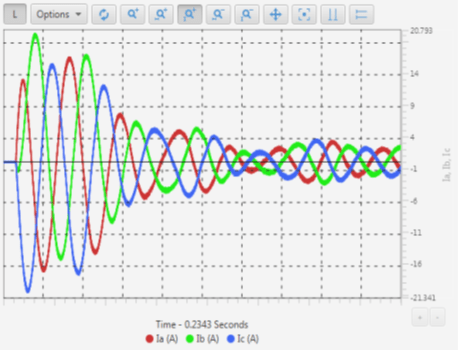

Live waveform time plots, XY plots, RMS/AVG/MAX/MIN probe signals measurement
Data Analysis

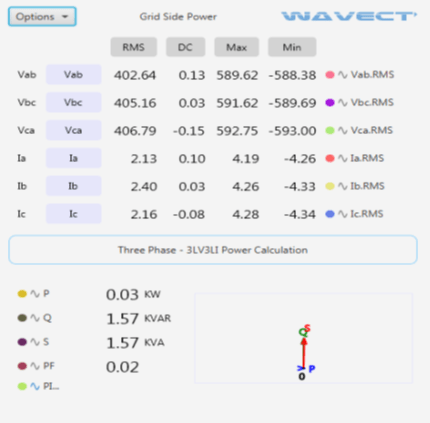

Live Data Analysys with integrated FFT Panel, Power Measurement Panel for Single, Two, Three and Four Phase Power Measurement, Power Quality Analyzer, Energy Panel and the most powerful Expression Pannel.
Data Logging

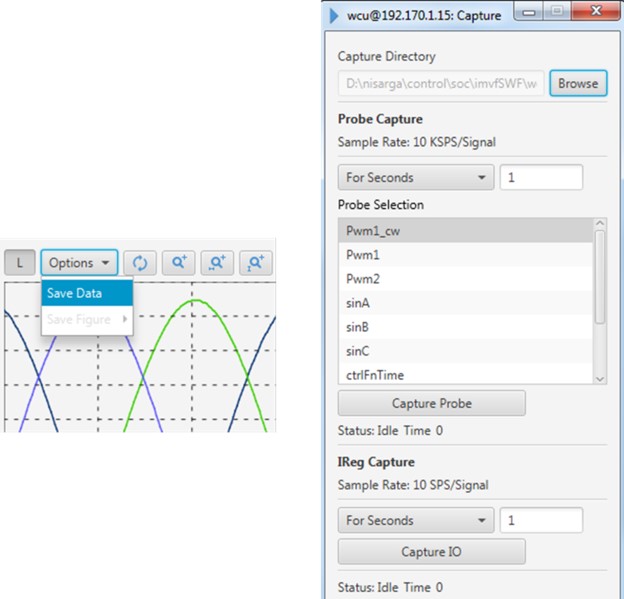

Save, Export and Analyse data with data logging feature. Saved data could be exported to 3rd party software for special purpose analysys and to maintain records.

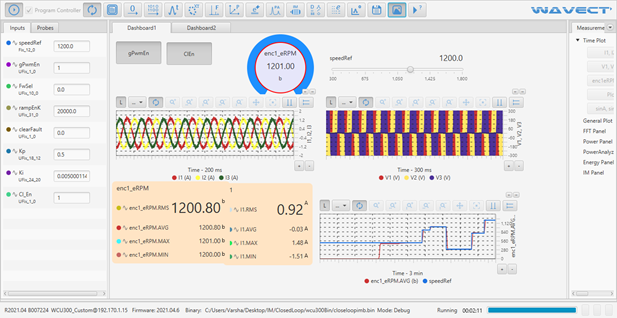

WAVECT® Suite - Dashboard.

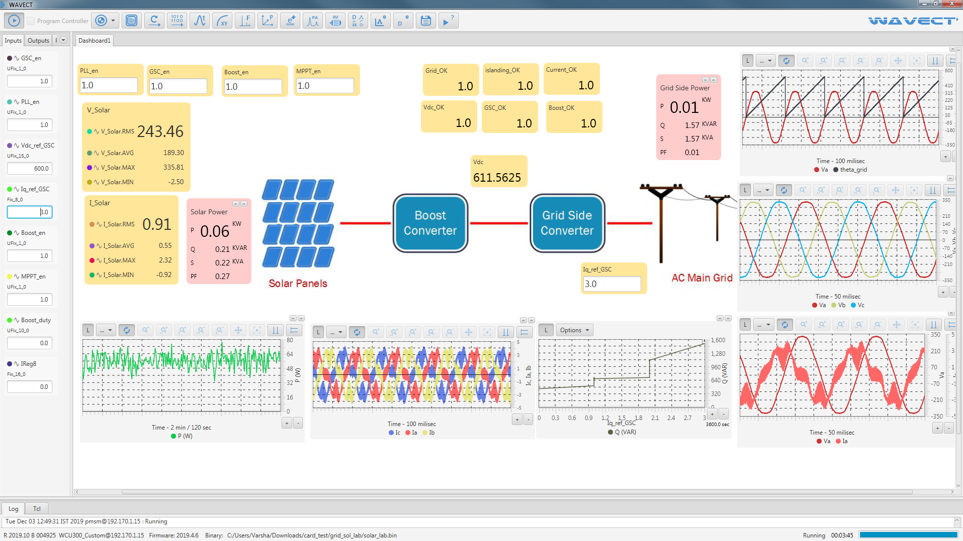

WAVECT® Suite is a Real time signal software framework with User Cofigurable Dashboard for the measurement of data, tuning of parameters and visualization of signals With various types of Plots and Graphs.
WAVECT® Suite - Data Analyzation.

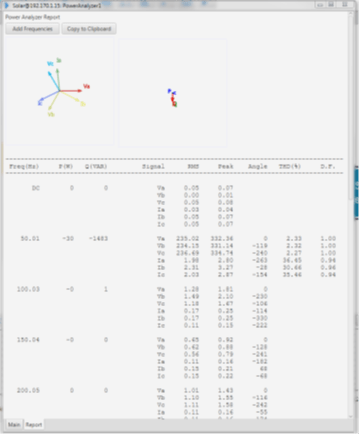

WAVECT® Suite comes with Pre-loaded Analy-zation tools like Power Panel, Power Analyser, Expression Panel, Data logger etc.
