500 Amp, Isolated 4 Channels, AC/DC Current Sensor Modules. Closed Loop Hall Effect Sensor, AC+DC ±500A RMS, ±800A Measuring range
Dedicated 16-bit Delta-Sigma Analog to Digital Converter per Channel. Up to 1MSPS Sampling per Channel.
200 Amp, Isolated 4 Channels, AC/DC Current Sensor Modules. Closed Loop Hall Effect Sensor, AC+DC ±200A RMS, ±350A Measuring
range Dedicated 16-bit Delta-Sigma Analog to Digital Converter per Channel. Up to 1MSPS Sampling per Channel
25 Amp, Isolated 8 Channels, AC/DC Current Sensor Modules. ±25A Nominal, ±80 A measuring range. Isolated Closed Loop Fluxgate
AC/DC Current Measurement ±10V Signal outputs BNC connector per channel Requires +12V DC External Supply
Voltage Sensors:
Isolated 8 Channels AC/DC Voltage Sensor Modules. ±1000V Range with Isolated AC/DC Instantaneous Measurement. ±10V Signal
outputs BNC connector per channel Requires +12V DC External Supply.

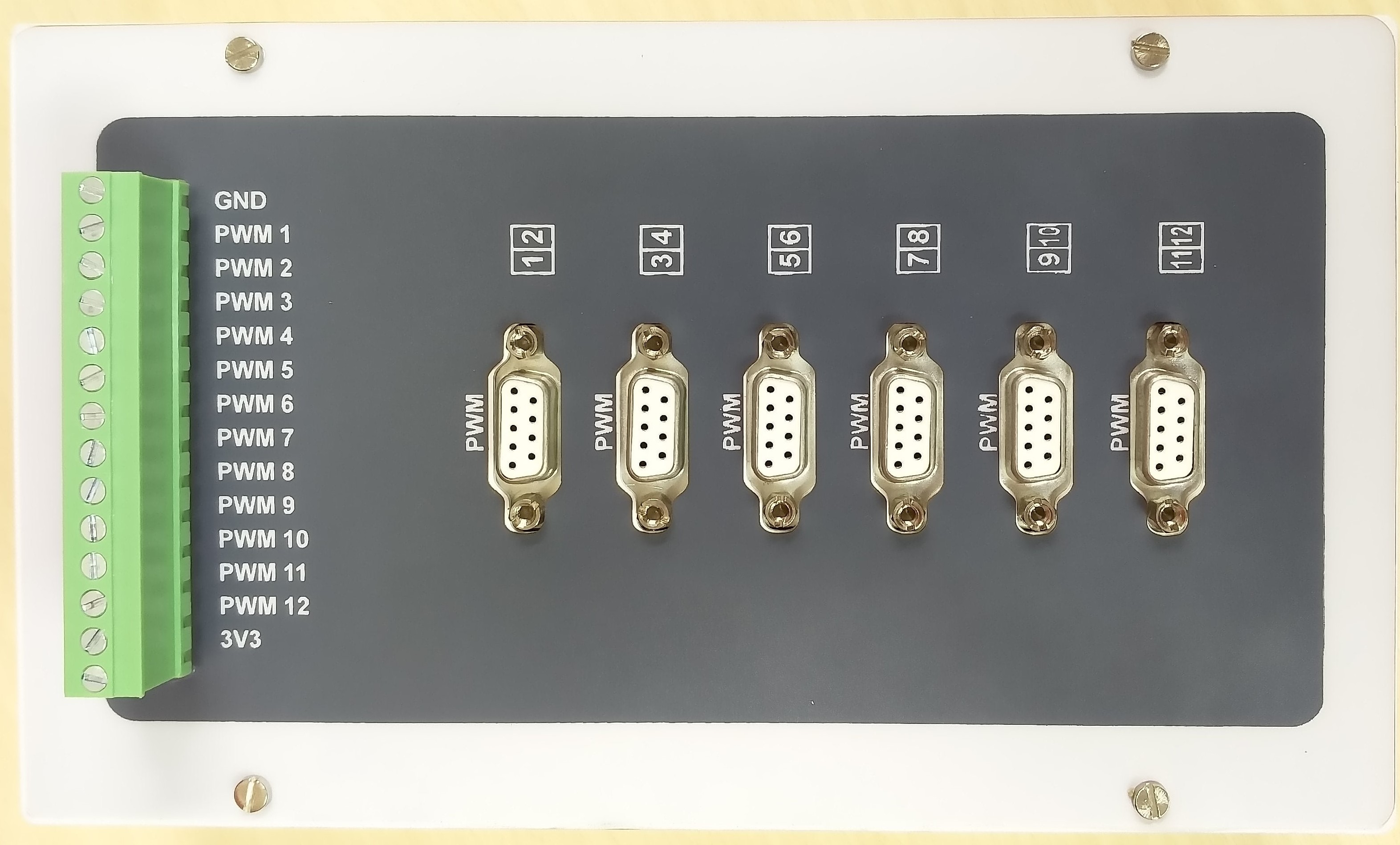

PWM Level Shifter Module:
Voltage level shifting:
Voltage level of 3.3 or 5 Volt is can be shifted to 0-15V.
Max 12 no. of PWM can be used for level shifting.
High Gain Bandwidth product (5MHz) provides high frequency range.
Integrated EMI filter reduce sensitivity to high frequency noise generator.
Optical Isolation:
High gain optocoupler, Consume low power, built in slew rate controlled output, 20KV/us Common mode rejection, High speed.
