WAVECT® WCU300
WAVECT®
WAVECT Controller is a compact, versatile real time control prototyping system. Comprising of high-end FPGA for fast computing and IO, dual core processor for control and communication, scalable embedded voltage and current sensors, large number of PWM outputs and high speed IO's. It is coupled with an easy and powerful model-based development environment and a dedicated real time signals software suite.
WAVECT supports most comfortable and widely used model development flow, strongly harnesed by WAVECT Suit software for data monitoring, data analysis, control functions and many more. Explore for more benefits and advance features.
Specifications
| WAVECT® WCU300 | WAVECT® WCU300HD | |
|---|---|---|
| FPGA Powered: Xilinx Zynq SoC – XC7Z020 Execute complex algorithms with 96 configurable high speed I/O Channels with parallel processing power of FPGA. |
 |
Advanced FPGA Powered: Xilinx Zynq SoC – ZC706
Execute complex algorithms with 128 configurable high speed I/O Channels with parallel processing power of Advanced FPGA. |

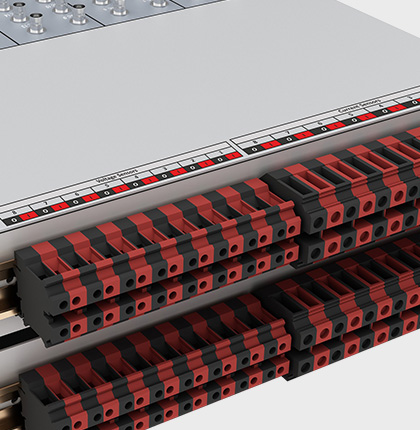

| Voltage and Current Sensors:
Equiped with Integrated Voltage and Current Sensors to Measure upto +/- 1000 volts and 25 Amp directly with internally isolated channels. |
 |
Voltage and Current Sensors:
Equiped with external Voltage and Current Sensors to Measure upto +/- 1000 volts and 25 Amp directly with internally isolated channels. |

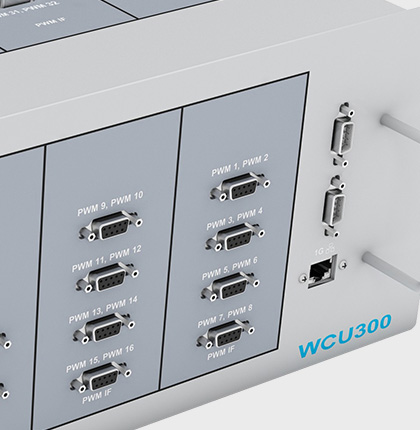

| PWM Channels: Control your inverters and converters directly without any intermediate circuitary with level shifted PWM channels. |
 |
PWM Channels: Control your IGBT Based inverters and converters directly without any intermediate circuitary with two Level PWM channels. |

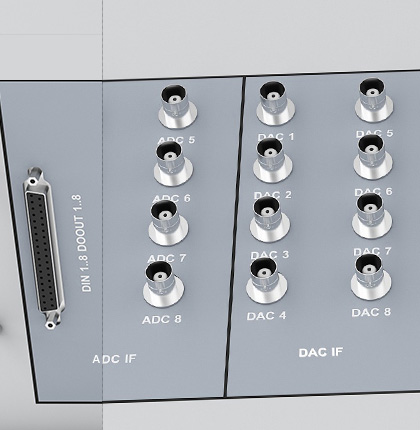

| Analog and Digital I/O's:
Export or Import data signals from external devices with high speed Analog and Digital IO's. |
 |
Analog and Digital I/O's:
Export or Import data signals from external devices and sensors with high speed Analog and Digital IO's. |

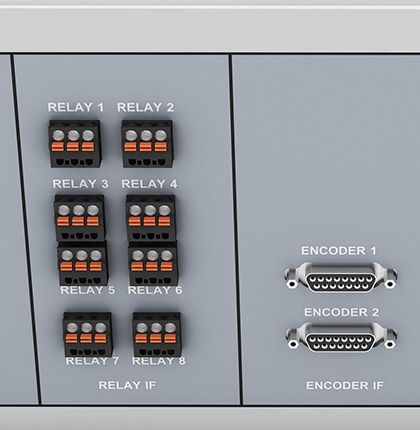

| Encoder Channels: Get Speed and Position data Signals from Motor Sensors with 1024 ppr Encoder Input channels. |
 |
Encoder Channels: Get Speed and Position data Signals from Motor Sensors with 1024 ppr Encoder Input channels. |
| Model based Programming: Develop algorithms 2X faster with the most user friendly and trusted programing platform. |
 |
Model based Programming: Develop algorithms 2X faster with the most user friendly and trusted programing platform. |
| WAVECT® Suit:
Convert your code with just 3 click's to Programme, Monitor, Analyze and Tune your controller with WAVECT Suite Software. |
 |
WAVECT® Suit:
Convert your code with just 3 click's to Programme, Monitor, Analyze and Tune your controller with WAVECT Suite Software. |
